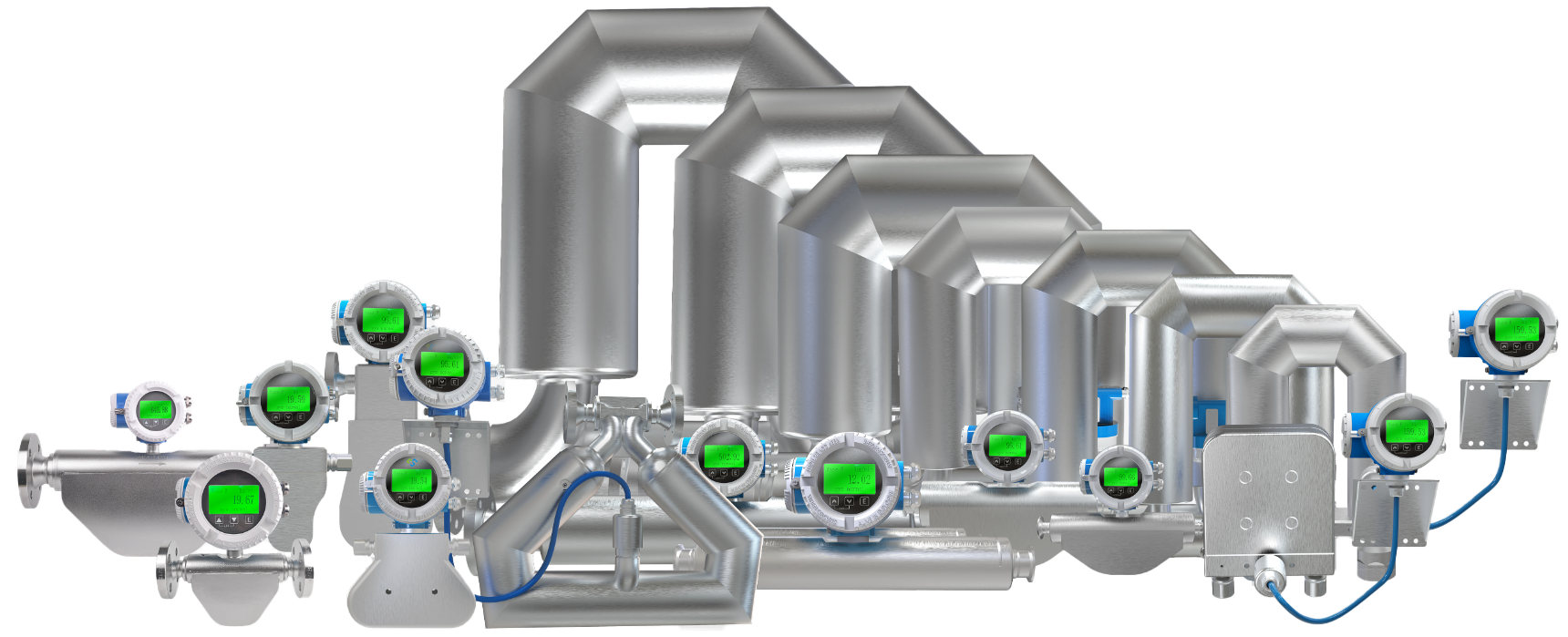

High-precision Coriolis flow meters for direct measurement of mass flow, density and temperature of liquids, gases and cryogenic media. From DN01 to DN250 — solutions for any industrial application.
Mass-EXPERT Coriolis mass flow meters are designed to measure the mass flow rate and mass of liquid (including oil) and gas, to determine the volumetric flow rate and volume of liquid, the volumetric flow rate of gas reduced to standard conditions, as well as the density of liquid and the temperature of the working medium.
At all stages — from engineering design to commissioning
Testing at accredited metrological centres
Robust design, self-diagnostics, quality system
For safe operation in any conditions

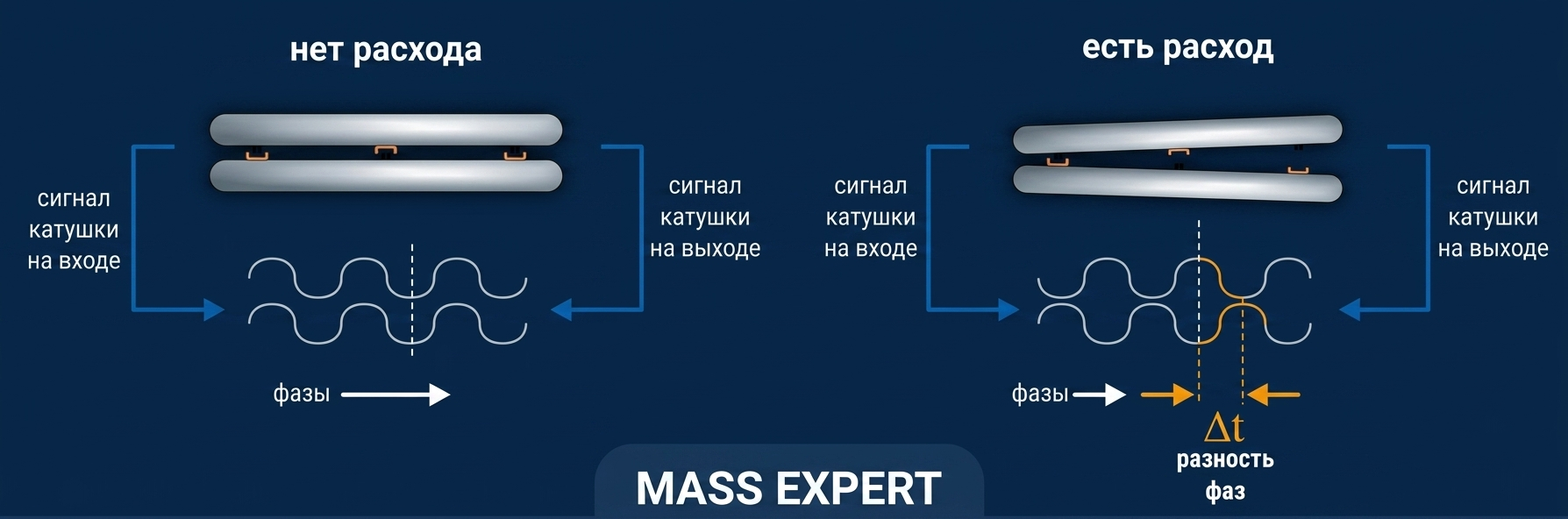

The Mass-EXPERT mass flow meter is based on the Coriolis effect and consists of two main components: a sensor and a transmitter.
The measuring tube constantly vibrates. If the medium is not flowing, the vibration is symmetrical. The flow of the medium creates a phase shift proportional to the mass flow rate.
Calculated from the natural oscillation frequency of the tubes. When the density of the medium changes, the vibration frequency changes as well. The flow meter determines density from this frequency.
Calculated automatically — from the measured mass flow rate and density of the medium. No additional sensors required.
Measured directly inside the flow meter by a built-in resistance temperature detector. No separate temperature sensor required.
Direct mass flow measurement based on the Coriolis effect: readings are independent of temperature, pressure, density and medium composition
Eliminates the problem of volumetric flow measurement. No need to convert volume to mass — eliminates errors caused by changes in temperature, pressure or density.
For liquids — up to ±0.1%, for gases — up to ±0.5%.
Up to 100:1 — per the type approval description No. 98506-26.
The reading smoothing time is adjustable — the user chooses how quickly the device responds to flow rate changes.
There are no moving parts inside the flow meter, which reduces the probability of failures and simplifies installation. Average service life — 20 years.
Measures flow rate, density, temperature and other parameters simultaneously. One mass flow meter can replace several measuring instruments.
The device reports faults itself, simplifying troubleshooting and reducing downtime.
Mass-EXPERT is not just a flow meter but an exact match to your old device in face-to-face length. We will extend the sensor and use the same connection type — replacement without changing the piping design.
L₁ = L₂ → face-to-face length and connection are identical
We will prepare a tailored quotation for your task: we will match an identical process connection, we guarantee 100% compatibility in face-to-face length
Visual step-by-step selection of the full flow meter configuration: from nominal diameter and operating conditions to sensor type, material and additional options. You do not have to fill in all the blocks — just select what you know, and we will clarify the rest together with you. In essence, it takes a couple of clicks to quickly request what you need and receive a quotation.
Diameter → Conditions → Sensor → Pressure → Connection → Material → Accuracy → … → Warranty
Fill in the questionnaire (download the PDF) and send it to info@ame-info.ru — it will speed up your quotation.
Mass-EXPERT mass flow meters are especially in demand in industries where metering accuracy, the need to measure aggressive, viscous, cryogenic or two-phase media, and metrological reliability requirements are critical.
Coriolis flow meters for continuous process operations and heavy industry.
Advanced and emerging areas: automation of gases, cryogenic media and energy storage.
Applied B2B solutions: fuel dispenser integration, micro-dosing cradles and fiscal metering units.
Sizes from DN01 to DN250 (connection up to DN300) ensure easy integration into existing pipelines. The entire product line is unified in terms of measuring principles, software, explosion protection marking and installation.
Maximum liquid mass flow rates for Mass-EXPERT flow meters
* As the flow rate approaches the lower limit of the range, zero point stability must be taken into account. It is this stability that determines how realistically the declared range can be achieved in practice.
| Model | Nominal diameter | Maximum flow rate, kg/h | Zero point stability, kg/h | Max. working pressure, MPa |
|---|---|---|---|---|
| Mass-EXPERT-001 | DN01 | 12 | 0,012 | ≤ 10 |
| Mass-EXPERT-002 | DN02 | 96 | 0,030 | ≤ 10 |
| Mass-EXPERT-003 | DN03 | 180 | 0,060 | ≤ 10 |
| Mass-EXPERT-004 | DN04 | 300 | 0,060 | ≤ 10 |
| Mass-EXPERT-008 | DN08 | 1 200 | 0,120 | ≤ 10 |
| Mass-EXPERT-015 | DN15 | 3 600 | 0,360 | ≤ 10 |
| Mass-EXPERT-020 | DN20 | 6 000 | 0,600 | ≤ 10 |
| Mass-EXPERT-025 | DN25 | 12 000 | 0,600 | ≤ 10 |
| Mass-EXPERT-040 | DN40 | 27 000 | 1,200 | ≤ 10 |
| Mass-EXPERT-050 | DN50 | 39 000 | 1,500 | ≤ 10 |
| Mass-EXPERT-080 | DN80 | 120 000 | 3,000 | ≤ 6,3 |
| Mass-EXPERT-100 | DN100 | 180 000 | 6,000 | ≤ 4 |
| Mass-EXPERT-150 | DN150 | 720 000 | 12,000 | ≤ 4 |
| Mass-EXPERT-200 | DN200 | 1 080 000 | 18,000 | ≤ 4 |
| Mass-EXPERT-250 | DN250 | 1 740 000 | 45,000 | ≤ 4 |
Max. working pressure — standard design (T): 10 MPa (DN01–DN50), 6.3 MPa (DN80), 4 MPa (DN100–DN250); DN01/DN02 — D sensor. For designs P/PK — see the operation manual tables.
The version with code P is intended for use in systems with pressure above 10 MPa. The design is rated for operation under ultra-high pressure, including refueling and dosing of hydrogen and other high-pressure gases.
| Model | Max. working pressure |
|---|---|
| Mass-EXPERT-001..P | ≤ 45 MPa |
| Mass-EXPERT-002..P | ≤ 20 MPa |
| Mass-EXPERT-003..P | ≤ 45 MPa |
| Mass-EXPERT-004..P | ≤ 30 MPa |
| Mass-EXPERT-008..P | ≤ 45 MPa / ≤ 30 MPa |
| Mass-EXPERT-015..P | ≤ 30 MPa / ≤ 35 MPa |
| Mass-EXPERT-025..P | ≤ 45 MPa |
Option PK flow meters have the features of option P and add a reinforced design for operation at ultra-high pressure up to 96 MPa — only in the Mass-EXPERT-003..PK version. Optimized for hydrogen measurement.
| Model | Max. working pressure |
|---|---|
| Mass-EXPERT-003..PK | ≤ 96 MPa / ≤ 70 MPa / ≤ 50 MPa / ≤ 40 MPa |
| Mass-EXPERT-004..PK | ≤ 35 MPa |
| Mass-EXPERT-008..PK | ≤ 30 MPa / ≤ 45 MPa |
| Mass-EXPERT-015..PK | ≤ 30 MPa / ≤ 25 MPa / ≤ 45 MPa |
| Mass-EXPERT-025..PK | ≤ 45 MPa |
Pressure values for one model — depending on the type of process connection. Values for 001..P/002..P are confirmed at ordering.
The Mass-EXPERT Coriolis mass flow meter provides direct measurement of the mass flow rate of liquids and gases. The results are independent of medium density, temperature, pressure and flow velocity distribution.

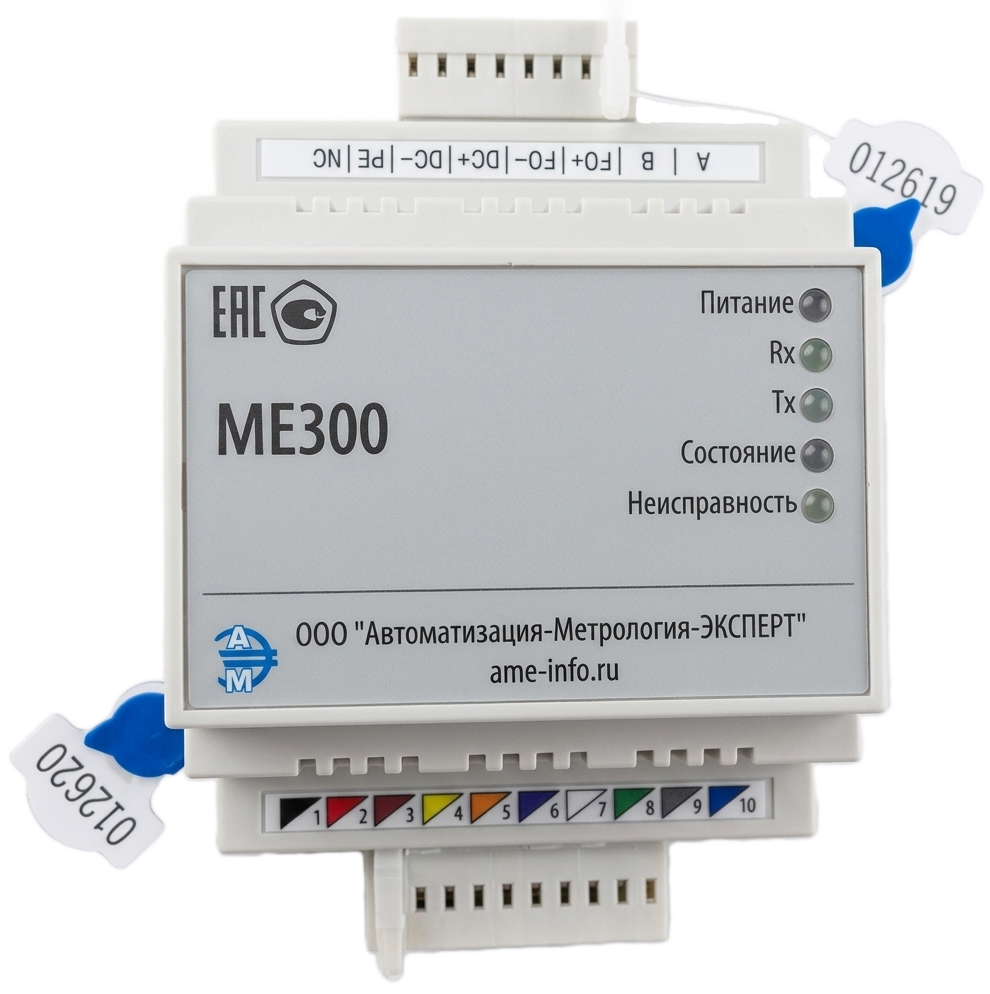

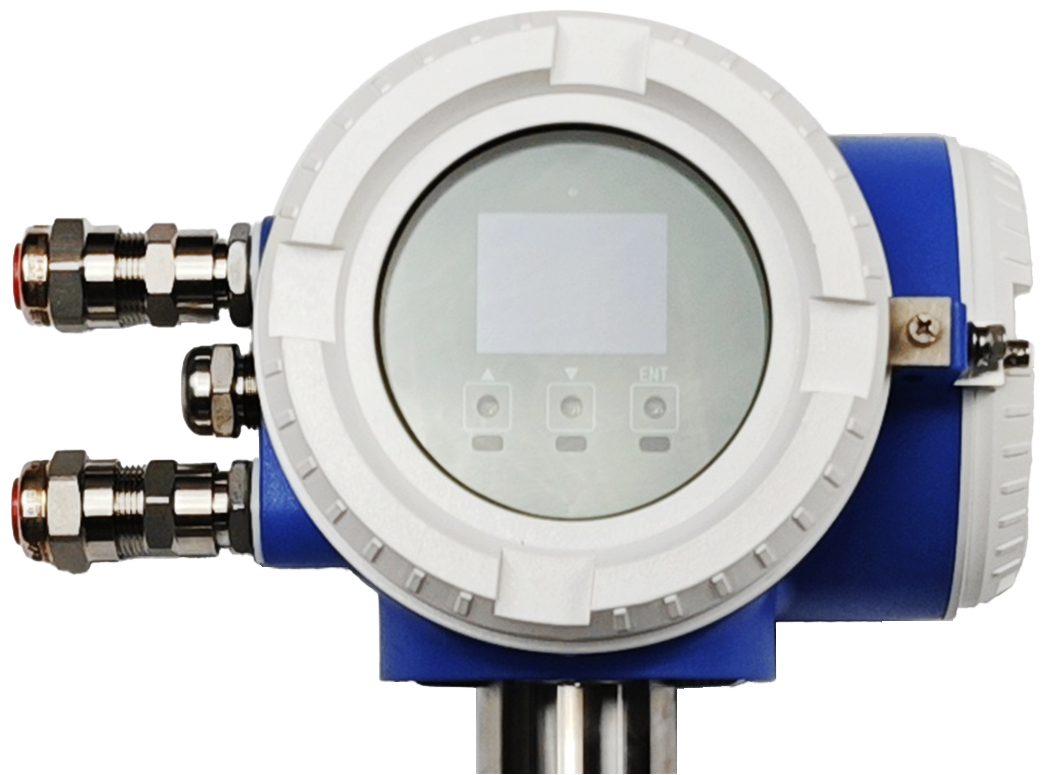

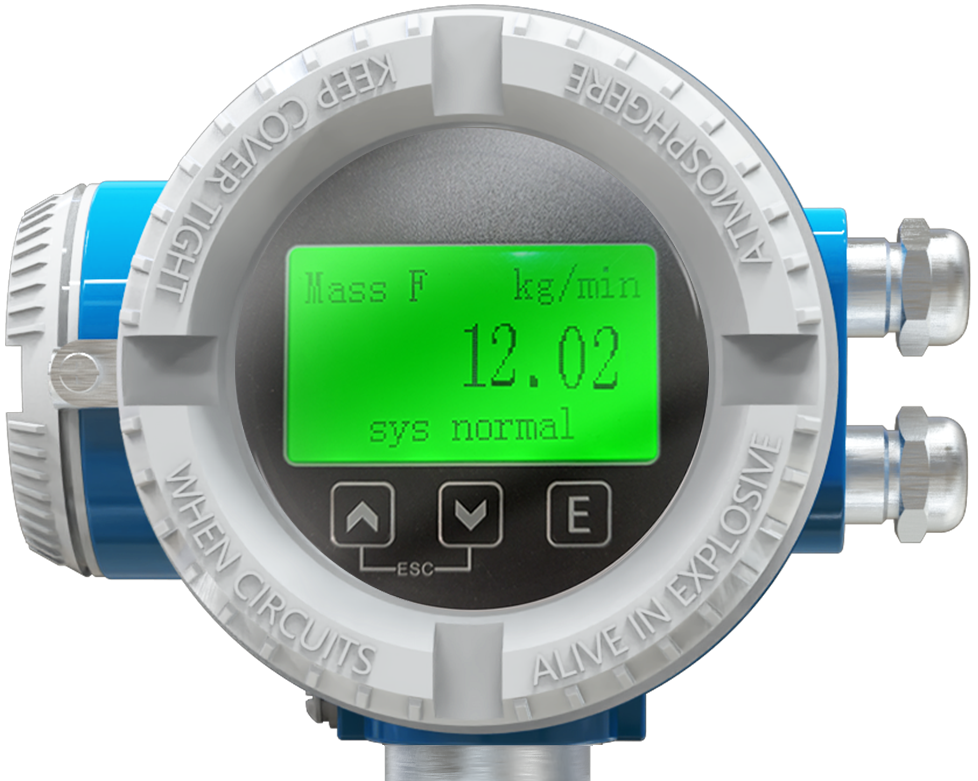

Four transmitter versions — from the basic ME100 to the ultra-compact stainless steel ME400.
In any configuration you get a high-performance microprocessor, an intuitive interface and built-in self-diagnostics that ensure stable operation and simplify maintenance.
LCD or LED display of your choice with an intuitive interface for fast, convenient configuration and viewing. Parameters can be set and viewed both from the display and remotely via M-link software. The ultra-compact ME400 has no display — it is controlled fully remotely.
Mass-EXPERT — flexible configuration for any task: from the basic transmitter to the advanced one, depending on your project's needs. Cost optimization: we use only the necessary functions — no overpaying for "extra" options.

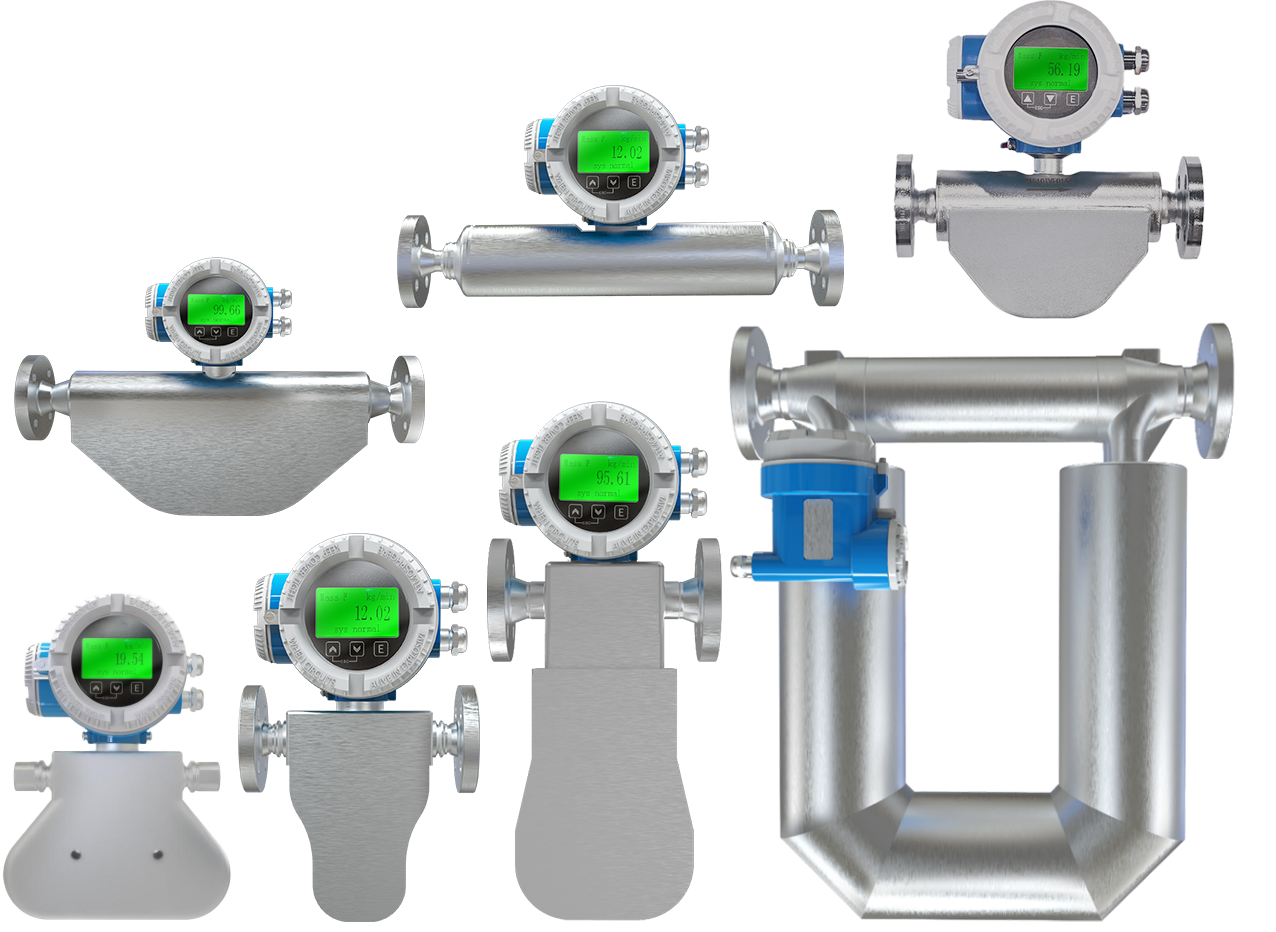

A basic solution for typical industrial conditions. Wide flow measuring range: for liquids from 1.2 kg/h to 1,740,000 kg/h. Connection diameter and the option to vary the face-to-face length to simplify replacement of the existing flow meter.

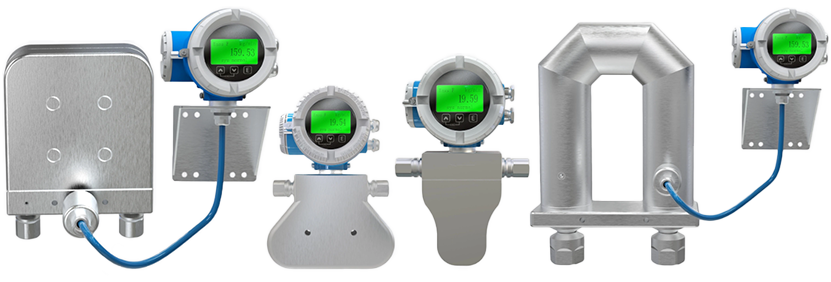

For systems with pressure above 10 MPa. Materials resistant to hydrogen embrittlement are used. Design safety margin — 1.5×. Reinforced design for operation at pressures above 10 MPa (≤96 MPa depending on size). High accuracy at low flow rates — increased oscillation amplitude. Support for standard high-pressure connections: UNF female thread, VCO/VCR fittings.

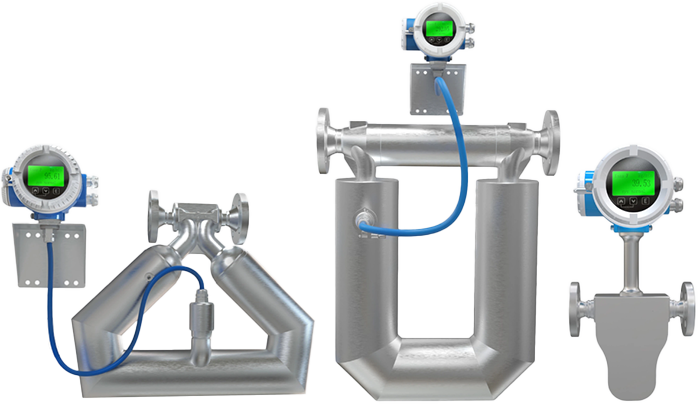

For cryogenic conditions at temperatures from −196 °C to +150 °C. High sensitivity at low flow rates of cryogenic liquids — liquid nitrogen, oxygen, methane. Compact design, extended service life. Operating temperature range per the State Register: −196…+350 °C.
For cryogenic plants at ultra-low temperatures from −255 °C to +150 °C: metering liquid gases — hydrogen, helium, nitrogen, oxygen — across liquefaction, storage and cryogenic refuelling. The range covers liquid-hydrogen temperature (−253 °C). Remote design only: the transmitter is mounted away from the sensor (standard cable length — 3 m) and stays clear of cryogenic temperatures.
Reliable operation at elevated temperatures up to +230 °C. For hot oils, melts, superheated steam. Available in remote design to protect the electronics unit from overheating.

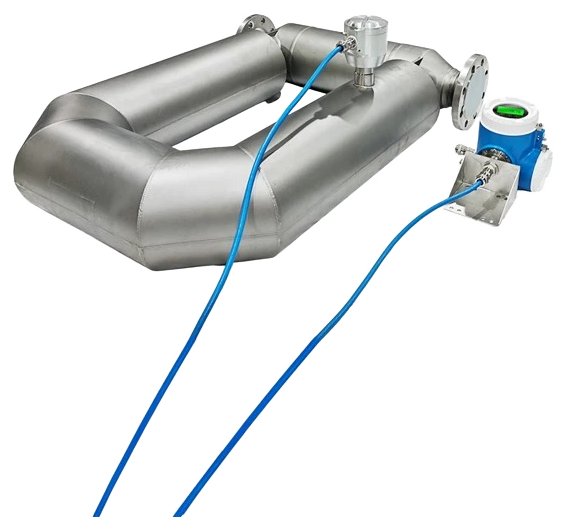

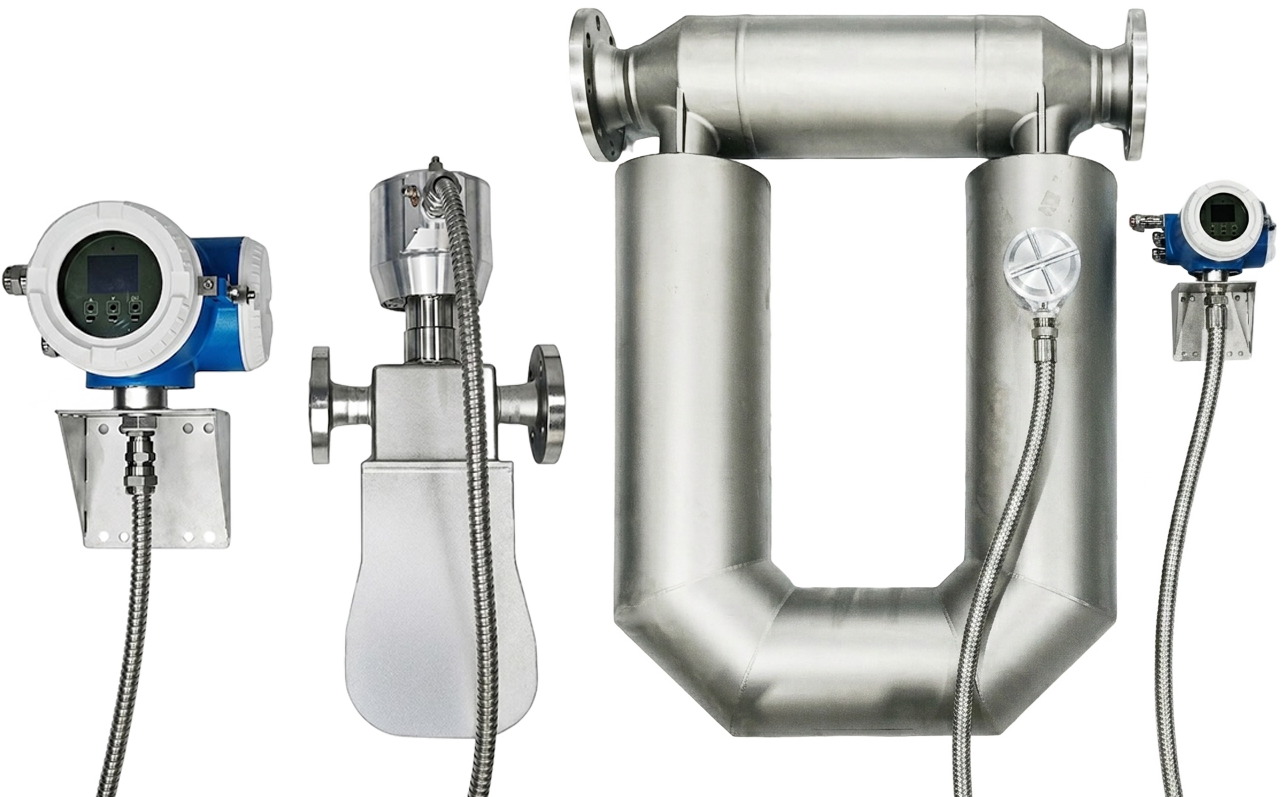

For ultra-high temperatures up to +350 °C. Used in remote design — the transmitter is moved to a safe area. For petrochemical plants and high-temperature reactors.
The choice of bend type depends on operating conditions, process specifics, installation space dimensions and the properties of the measured medium. The right choice ensures maximum efficiency, safety and service life of the flow meter.

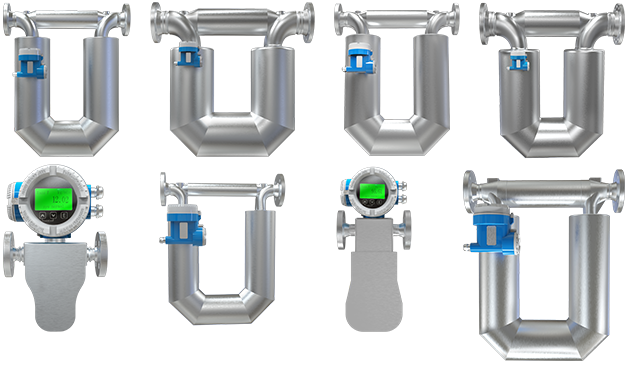

Measuring tubes with a U-shaped design are one of the most common and time-proven sensor types in Coriolis flow meters.
Advantages:
Diameters: DN03–DN250

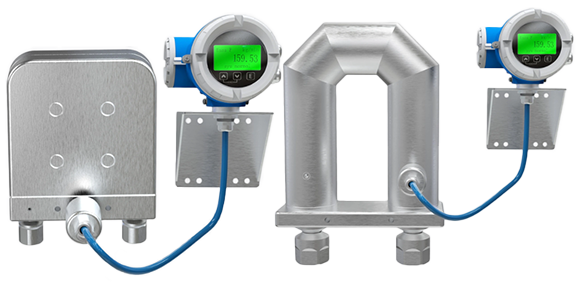

Measuring tubes with a wide U-shaped profile — a specialized version designed for high and ultra-high pressure operation, including use with hydrogen, helium, nitrogen and other high-pressure gases.
Advantages:
Diameters: DN02–DN25

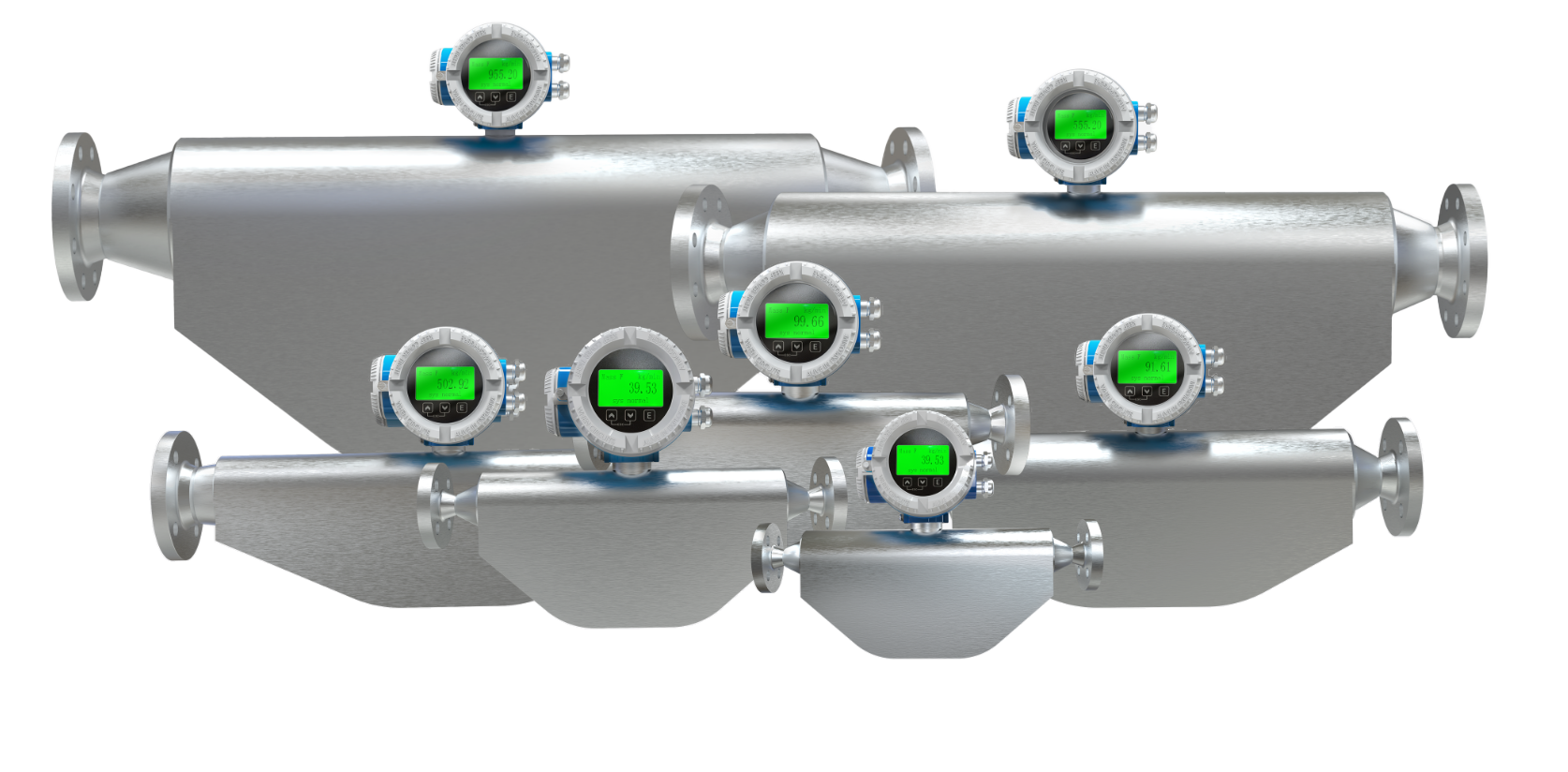

Measuring tubes with a W-shaped micro-bend — a compact, engineered solution for systems with limited installation space and high accuracy requirements at low flow rates.
Advantages:
Diameters: DN08–DN100

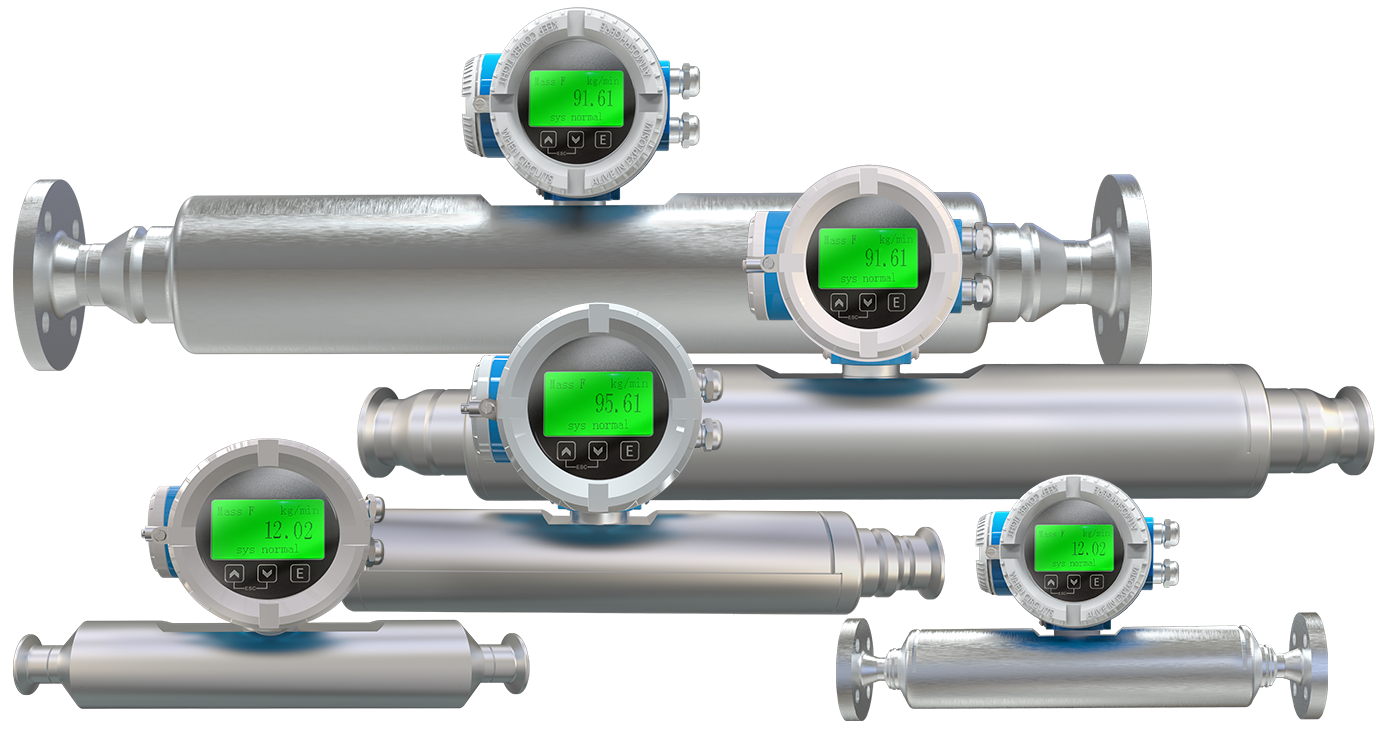

A bend-free design — the optimal solution for media with high viscosity, abrasive particles, aggressive properties, or products sensitive to mechanical impact.
Advantages:
Diameters: DN08–DN50
Medium parameters: −50…+150 °C, working pressure ≤10 MPa. Default connection — Tri-Clamp (DIN 32676 clamp).
Recommended for: oil & gas (fuel oils, bitumen), cement industry, chemicals (acids, alkalis, polymers), food & beverage and pharmaceuticals.

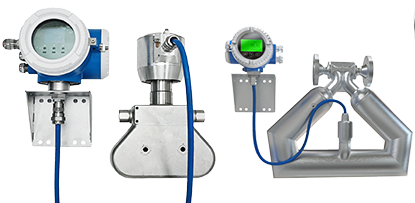

A design with two symmetrical tubes forming a Δ-shaped (triangular) geometry, developed to provide maximum mechanical stiffness and resistance to external influences. Especially effective with gases, high-pressure liquids and strong flow pulsation.
Advantages:
Diameters: DN01, DN02, DN25
Applications: precision dosing in chemicals and pharmaceuticals, petrochemical laboratory benches, gas and LPG on small lines, mobile units and skid modules, high-precision dispensers.

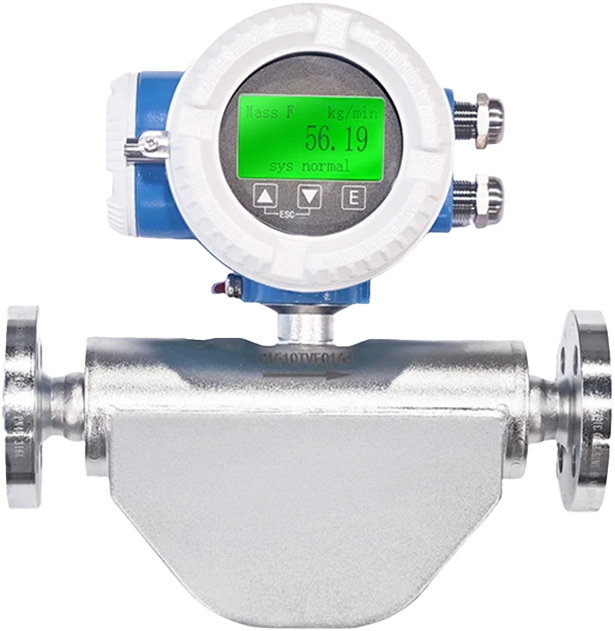

V-shaped measuring tube design — an ultra-compact solution for direct replacement of installed Endress+Hauser flow meters. Face-to-face length is identical, replacement without pipeline modifications. Pressure — up to 10 MPa.
Advantages:
Diameters: DN08, DN15, DN25, DN40, DN50

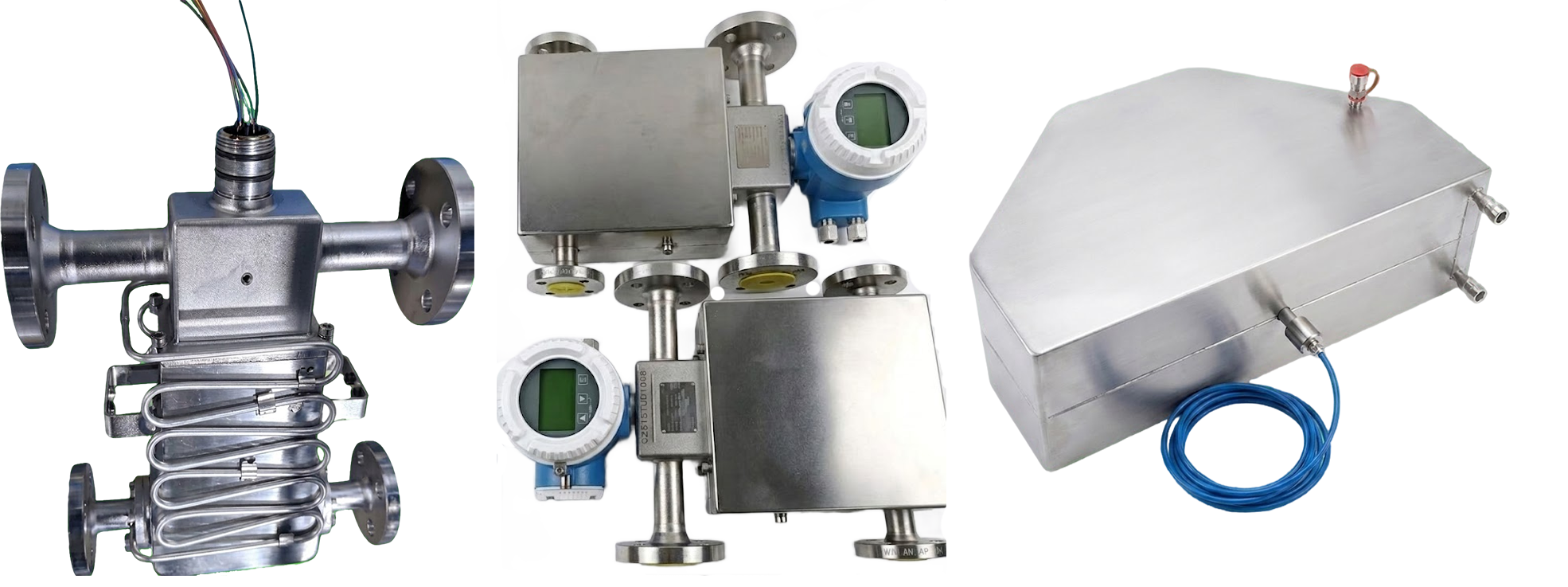

For media that require a constant temperature: bitumen, sulfur, paraffins, fuel oils.
The isothermal jacket is a heat-insulating shell for the flow meter sensor, through which a heat transfer medium (steam, hot oil) is passed. It is designed for flow measurement of media sensitive to temperature changes: bitumen, sulfur, paraffins, fuel oils, tars, resins, polymers.
Why it matters:
Result: stable temperature → constant viscosity → accurate and reproducible measurements within the flow meter's rated accuracy.

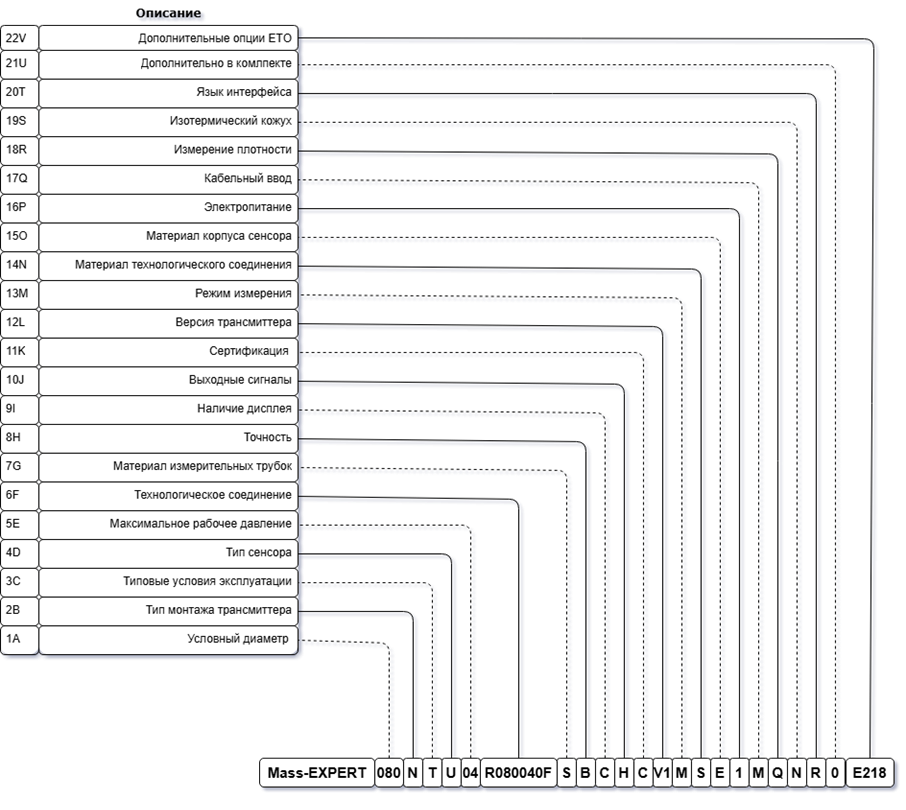

Mass-EXPERT designation structure / order code. Each block encodes a specific option.
All Mass-EXPERT instruments are certified in accordance with the requirements of the Customs Union Technical Regulations and entered in the State Register of Measuring Instruments.
Mass-EXPERT Coriolis mass flow meters are entered in the State Register of Measuring Instruments. Registration number 98506-26.
Download type approval descriptionType approval of a measuring instrument. Full compliance with the requirements for measuring instruments in the Russian Federation.
Download certificateEmbedded software: the metrologically significant part (identifier Ca_Ver 3) is protected against unauthorized changes. Protection level against unintentional and intentional changes per R 50.2.077-2014 — "high".
Certificate of conformity to TR CU 012/2011 "On the safety of equipment for operation in explosive atmospheres". Explosion protection marking: with the ME100 transmitter — Ex db ib IIC T6 Gb; with ME200 — Ex db ia IIC T6 Gb; ME200 (dust) — Ex ia tb IIIC T80 °C Db.
Download certificateDeclaration of conformity to TR CU 020/2011 "Electromagnetic compatibility of technical equipment".
Download declarationVerification procedure 2026-VP 98506-26. The document defines the procedure and methods for initial and periodic verification of the flow meters.
Download VPComplete Mass-EXPERT operation and installation manual. Description, installation, setup, diagnostics, maintenance.
Download manualSelection form for the flow meter: medium, flow rate, pressure and temperature, process connection, certification and Ex requirements. A completed questionnaire helps our engineers confirm the configuration and prepare a quotation faster.
Download the questionnaireCertificate confirming the seismic resistance of Mass-EXPERT flow meters. The equipment is resistant to seismic effects.
Download certificateDecision on the non-applicability of TR CU 032/2013 "On the safety of equipment operating under overpressure".
Download decisionFill in the form — we will select the optimal configuration for your application and send you a quotation
